Description

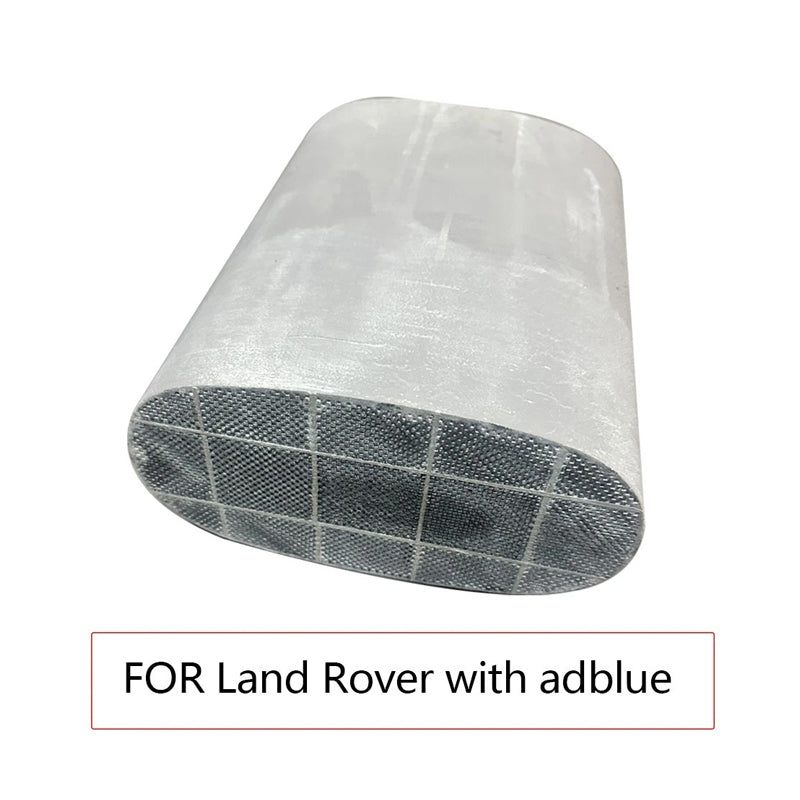

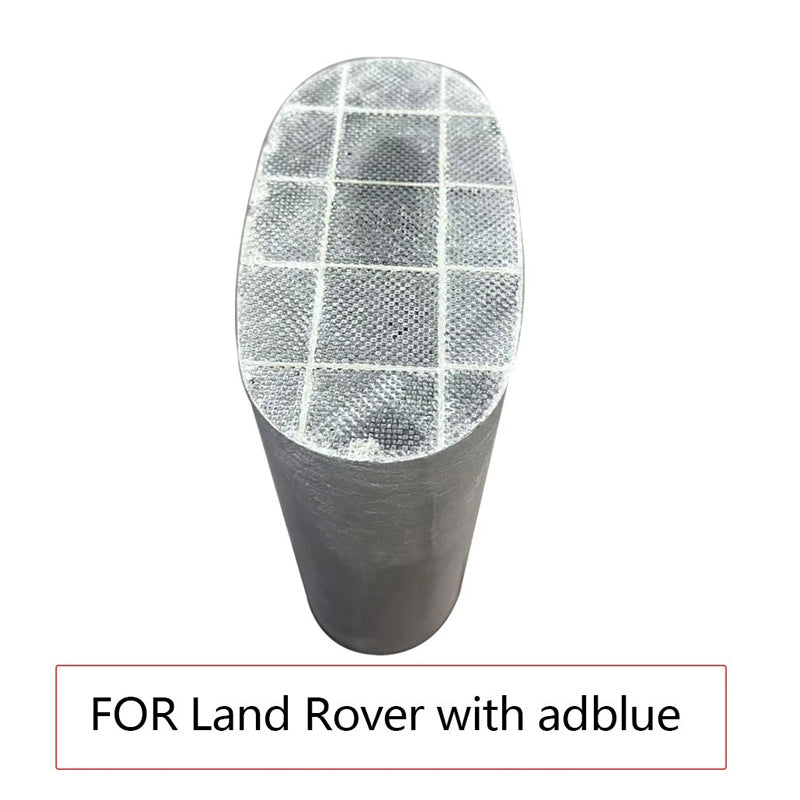

xUniversal Diesel Particulate Filter
name:diesel particulate filter
Material: Silicon carbide
Coating:yes
Note:For bulk orders, please contact us for discounts
If you need a large batch, please contact our customer service High flow catalytic converter, Note : Since there are many product sizes and many models, please allow us to have +-1mm error, I hope buyers can understand
About our company
1.Introduction of KSRCAT CORDIERITE DPF
KSRCAT Cordierite Diesel Particulate Filter (hereinafter called DPF) is designed to remove black smoke (soot, hereinafter called PM) form diesel engine exhaust, making great contribution to clean the exhaust gas from diesel cars while attracting much attention from worldwide car manufacturers. In order to satisfy environmental regulations that should become increasingly strict in the future, installation of DPF will be obligated, thus DPF demand will further expand in the future. KSRCAT DPF based on the well-known made of Cordierite, has demonstrated high filtering efficiency of diesel particulate emissions. Applications of this technology include passenger cars, urban and school buses, on highway trucks, mining equipment, and forklift trucks.
2.Adavantages and disadvantages:
Cordierite wall flow filters The most common filter is made of cordierite (a ceramic material that is also used as catalytic converter support. Cordierite DPF filters provide excellent filtration efficiency, are (relatively) inexpensive, and have thermal properties that make packaging them for installation in the vehicle simple. The major drawback is that cordierite has a relatively low melting point (about 1200 °C) and cordierite substrates have been known to melt down during filter regeneration. This is mostly an issue if the filter has become loaded more heavily than usual, and is more of an issue with passive systems than with active systems, unless there is a system breakdown. Cordierite filter cores look like catalytic converter cores that have had alternate channels plugged - the plugs force the exhaust gas flow through the wall and the particulate collects on the inlet face.
3.Technical Specification of JINTAI Cordierite Diesel Particulate Filter:
4.Our available size and tolerance:
Additional Information
xMetal honeycomb, nearly 10,000 specifications, non-standard customization
- Housing:
- 316L, 304, 444, 441 (or customer-specified)
- Core material:
- FeCr21AL6
- Carrier outer diameter:
- 12~960mm
- Height:
- 9~150mm
- Cpsi:
- 5~1200cpsi
- Shell wall thickness:
- 0.5~3.0, no shell is available
- Core wall thickness:
- 0.03~0.18
- Inner core:
- one core, S core, three cores
- Shape:
- cylindrical, rectangular, square, runway-shaped, oval, trapezoidal, pentagonal, pear-shaped
Shipping & Return
xReturns Policy
You may return most new, unopened items within 30 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).
You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).
If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.
Shipping
We can ship to virtually any address in the world. Note that there are restrictions on some products, and some products cannot be shipped to international destinations.
When you place an order, we will estimate shipping and delivery dates for you based on the availability of your items and the shipping options you choose. Depending on the shipping provider you choose, shipping date estimates may appear on the shipping quotes page.
Please also note that the shipping rates for many items we sell are weight-based. The weight of any such item can be found on its detail page. To reflect the policies of the shipping companies we use, all weights will be rounded up to the next full pound.
About Customization
x| First | Please tell us what you want to do (ceramic or metal catalyst or DPF, DOC, DPF) |
| Second | Please tell us the customized material, coating requirements, CPSI, purchase quantity, etc |
| Third | If it is a custom metal package, a custom drawing is required |
| Fourth | If the catalyst is customized, there are numerical requirements for PD, PT, RH, and the minimum sample is 3 |
| Proin Fifth | If you need to customize the three-way catalyst assembly (the whole exhaust pipe) if we don't have a sample, you need to provide a sample to us |
| Finally | Whatsapp:+8613335696939,Email:KSRCAT@proton.me |
