Description
xProduct Introduction

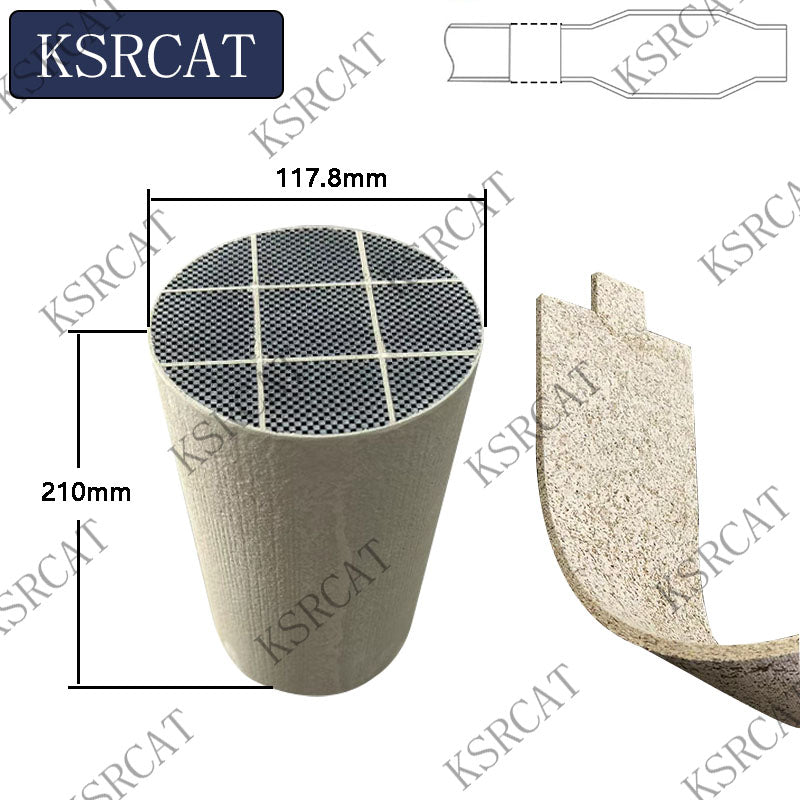

| Product name | DPF | Material | Silicon carbide |
| Diameter | 117.8mm | High | 210mm |
| Cpsi | 200/300 | Customization | Support |
| Error | ±0.2mm | Quality | High standard |
| Package | Neutral packaging | Price includes |
1 pcs SIC DPF +1 pcs Insulation Materials |
Sellers’ Notes Checklist
Important things |
|
|---|---|
|
1 |
• This product is suitable for highway diesel vehicles with good vehicle condition and normal exhaust temperature. |
|
2 |
• Regarding the pressure value, we ship as stock products, usually 200cpsi, which is used in Euro 5/6 small diesel vehicles without any problems. For example, if it is used in DAF trucks, some Euro 6 models, which are very sensitive to pressure values, you need to contact us, because the pressure value of such trucks is usually 10-13Kpa |
|
3 |
• If you have any requirements for PD, RH, Or there are higher requirements for precious metal content • Please contact us. |
|
4 |
• For bulk purchases • please contact us to obtain a stock form |
|
5 |
• We have super stock, PT/3gr ft³/PT/5gr ft³/PT/10gr ft³/PT/20gr ft³......Bulk purchase customers please contact us privately to apply for order discounts |
| Product link is the price of a single sample | For bulk purchases, please contact our staff | |
Ready to Upgrade?
👉 Click to Order Now | 📞 Contact Sales:
Advantage of diesel particulate filter:
1. Low pressure drop.
2. Low coefficient of thermal expansion.
3. Good thermal shock resistance.
4. High temperature resistance, good resistance to chemical corrosion.
5. High porosity, pore size distribution uniform, high filter specific surface area.
6. Long-term durability performance.
7. High particulate trapping efficiency, suitable for all kinds of regeneration.（Except for uncoated DPF）
If you want know more things about the DPF, please contact us directly, I will do my best to service for you.

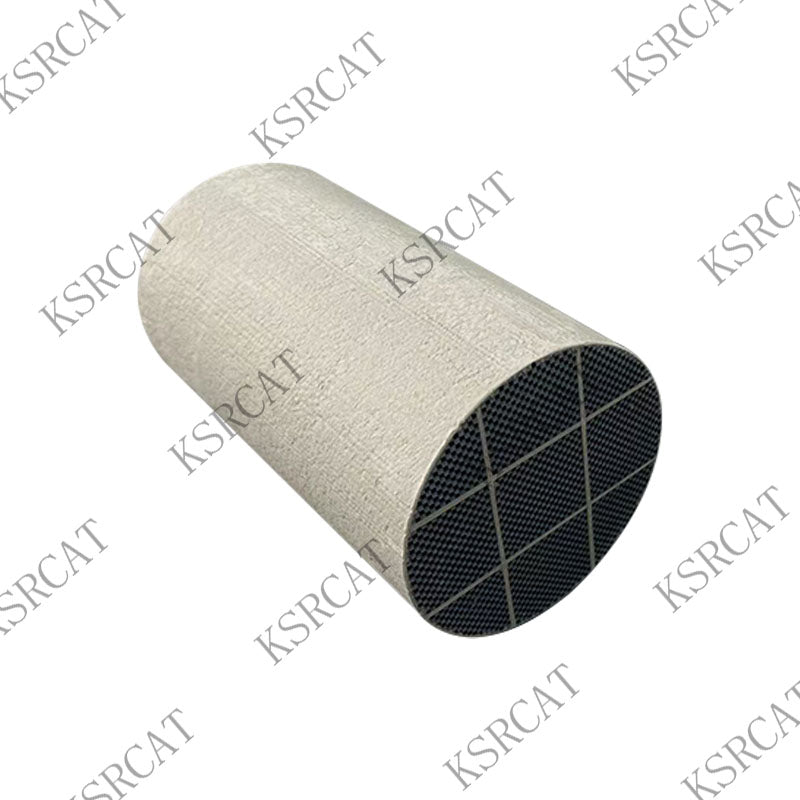

Silicon carbide diesel particulate filters (Sic wall flow filters) have a higher melting point and filtration efficiency (can be up to 95%) than cordierite, they are usually more expensive than cordierite wall flow filters.
Technical data of Sic Diesel Particulate Filter:
| Item | Units | Technical Index |
|---|---|---|
| SIC Content | % | >90 |
| Cell density | Cpsi | 200 |
| Wall thickness | mm | 0.35-0.41 |
| Cell Length | mm | 1.2-1.45 |
| Apparent Porosity | % | 42-60 |
| Median Pore Size | μm | 12-20 |
| Transverse Compression Strength | Mpa | >2.3 |
| Vertical Compression Strength | Mpa | 10-18 |
| Coefficient of thermal expansion (40-800°C) | 10^-6/℃ | 4.3-4.4 |
| Thermal Conductivity( 500°C) | W/mK | 14-22 |
| Capture Rate | % | >95 |
| Bulk Density | Kg/L | 0.8 |
| Filter Area | ㎡ | 0.75 |
| Softening Temperature | ℃ | 1400 |
Coating Difference
With coating |
Without coating |
Noble metals (such as platinum, palladium) or metal oxides (such as CeO₂, ZrO₂) are usually coated as catalysts to promote the oxidation reaction of particulate matter (PM).It can passively regenerate through catalytic reaction at a lower temperature (about 250-350°C), convert soot into CO₂, and reduce the frequency of active regeneration (high temperature combustion).It can catalyze the conversion of NOx at the same time (such as SCR function) to achieve coordinated treatment of multiple pollutants.
|
It only relies on physical filtration and needs to actively regenerate and burn soot at high temperature (about 550-650°C), which has higher energy consumption and strict requirements on engine operating conditions.It cannot handle gaseous pollutants such as NOx.
|
High passive regeneration efficiency and reduced fuel consumption (reduced fuel injection for active regeneration).Suitable for frequent start-stop or low temperature conditions (such as urban roads). |
Fully dependent on active regeneration, requiring engine adjustments (post-injection of fuel) to increase exhaust temperatures, potentially increasing fuel consumption and thermal stress. |
Other types
| Product Name | Jump link | Product images |
|---|---|---|
| Shell | Link |
 |
| Shell+Caliber | Link |
 |
Additional Information
xMetal honeycomb, nearly 10,000 specifications, non-standard customization
- Housing:
- 316L, 304, 444, 441 (or customer-specified)
- Core material:
- FeCr21AL6
- Carrier outer diameter:
- 12~960mm
- Height:
- 9~150mm
- Cpsi:
- 5~1200cpsi
- Shell wall thickness:
- 0.5~3.0, no shell is available
- Core wall thickness:
- 0.03~0.18
- Inner core:
- one core, S core, three cores
- Shape:
- cylindrical, rectangular, square, runway-shaped, oval, trapezoidal, pentagonal, pear-shaped
Shipping & Return
xReturns Policy
You may return most new, unopened items within 30 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).
You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).
If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.
Shipping
We can ship to virtually any address in the world. Note that there are restrictions on some products, and some products cannot be shipped to international destinations.
When you place an order, we will estimate shipping and delivery dates for you based on the availability of your items and the shipping options you choose. Depending on the shipping provider you choose, shipping date estimates may appear on the shipping quotes page.
Please also note that the shipping rates for many items we sell are weight-based. The weight of any such item can be found on its detail page. To reflect the policies of the shipping companies we use, all weights will be rounded up to the next full pound.
About Customization
x| First | Please tell us what you want to do (ceramic or metal catalyst or DPF, DOC, DPF) |
| Second | Please tell us the customized material, coating requirements, CPSI, purchase quantity, etc |
| Third | If it is a custom metal package, a custom drawing is required |
| Fourth | If the catalyst is customized, there are numerical requirements for PD, PT, RH, and the minimum sample is 3 |
| Proin Fifth | If you need to customize the three-way catalyst assembly (the whole exhaust pipe) if we don't have a sample, you need to provide a sample to us |
| Finally | Whatsapp:+8613335696939,Email:KSRCAT@proton.me |
