Product Introduction High-Efficiency Silicon Carbide DPF for Diesel Exhaust Systems Product name DPF Material Silicon carbide Diameter...
Vendor: KSRCAT
Availability: In Stock
Product Type: Diesel Particulate Filter
$337.89
$337.89
Please hurry! Only 1 left in stock
1pcs: 330x178mm
Subtotal: $337.89
Ask An Expert
10 customers are viewing this product

Shipping

According to the cost and timeliness indicated at the time of placing the order, it shall prevail

Free Returns

Learn More.

At present, it is the China Shopping Festival, and the logistics are delayed for 2-3 days

330x178mm SiC substrate DPF High Flow DPF Core Silicon Carbide Material Diesel particulate filter

330x178mm SiC substrate DPF High Flow DPF Core Silicon Carbide Material Diesel particulate filter

$337.89
330x178mm SiC substrate DPF High Flow DPF Core Silicon Carbide Material Diesel particulate filter
330x178mm SiC substrate DPF High Flow DPF Core Silicon Carbide Material Diesel particulate filter
330x178mm SiC substrate DPF High Flow DPF Core Silicon Carbide Material Diesel particulate filter

330x178mm SiC substrate DPF High Flow DPF Core Silicon Carbide Material Diesel particulate filter

$337.89
1pcs: 330x178mm
Description
Description
x

Product Introduction

High-Efficiency Silicon Carbide DPF for Diesel Exhaust Systems

Product name DPF Material Silicon carbide

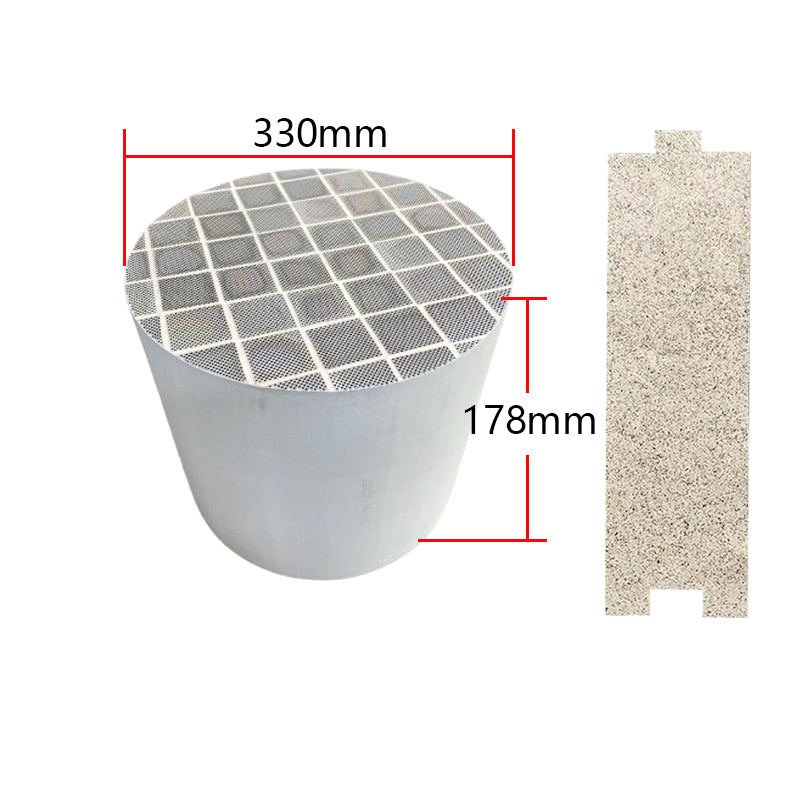

Diameter 330mm High 178mm
Cpsi 200/300 Customization Support
Error ±0.1mm Quality High standard
Package Neutral packaging Price includes

1 pcs SIC DPF

+1 pcs Insulation Materials+1pcs

Sellers’ Notes Checklist


 Important things



1

 • This product is suitable for highway diesel vehicles with good vehicle condition and normal exhaust temperature.



2

 • Regarding the pressure value, we ship as stock products, usually 200cpsi, which is used in Euro 5/6 small diesel vehicles without any problems. For example, if it is used in DAF trucks, some Euro 6 models, which are very sensitive to pressure values, you need to contact us, because the pressure value of such trucks is usually 10-13Kpa



3

 • If you have any requirements for PD, RH, Or there are higher requirements for precious metal content
• Please contact us.



4

• For bulk purchases

• please contact us to obtain a stock form



5

• We have super stock, PT/3gr ft³/PT/5gr ft³/PT/10gr ft³/PT/20gr ft³......Bulk purchase customers please contact us privately to apply for order discounts
Product link is the price of a single sample | For bulk purchases, please contact our staff


Ready to Upgrade?
👉 Click to Order Now | 📞 Contact Sales:


KSRCAT-Alison

+86 150 8247 5717

ksrcatalytic@gmail.com


KSRCAT-Davin

+86 133 3569 6939

KSRCAT@proton.me


KSRCAT-Mia

+86 136 8171 1685

kesairay@proton.me

Advantage of diesel particulate filter:

1. Low pressure drop.

2. Low coefficient of thermal expansion.

3. Good thermal shock resistance.

4. High temperature resistance, good resistance to chemical corrosion.

5. High porosity, pore size distribution uniform, high filter specific surface area.

6. Long-term durability performance.

7. High particulate trapping efficiency, suitable for all kinds of regeneration.（Except for uncoated DPF）

If you want know more things about the DPF, please contact us directly, I will do my best to service for you.

Silicon carbide diesel particulate filters (Sic wall flow filters) have a higher melting point and filtration efficiency (can be up to 95%) than cordierite, they are usually more expensive than cordierite wall flow filters.

Technical data of Sic Diesel Particulate Filter:



Item Units Technical Index
SIC Content % >90
Cell density Cpsi 200
Wall thickness mm 0.35-0.41
Cell Length mm 1.2-1.45
Apparent Porosity % 42-60
Median Pore Size μm 12-20
Transverse Compression Strength Mpa >2.3
Vertical Compression Strength Mpa 10-18
Coefficient of thermal expansion (40-800°C) 10^-6/℃ 4.3-4.4
Thermal Conductivity( 500°C) W/mK 14-22
Capture Rate % >95
Bulk Density Kg/L 0.8
Filter Area ㎡ 0.75
Softening Temperature ℃ 1400



Coating Difference

With coating

Without coating
Noble metals (such as platinum, palladium) or metal oxides (such as CeO₂, ZrO₂) are usually coated as catalysts to promote the oxidation reaction of particulate matter (PM).It can passively regenerate through catalytic reaction at a lower temperature (about 250-350°C), convert soot into CO₂, and reduce the frequency of active regeneration (high temperature combustion).It can catalyze the conversion of NOx at the same time (such as SCR function) to achieve coordinated treatment of multiple pollutants.





It only relies on physical filtration and needs to actively regenerate and burn soot at high temperature (about 550-650°C), which has higher energy consumption and strict requirements on engine operating conditions.It cannot handle gaseous pollutants such as NOx.


High passive regeneration efficiency and reduced fuel consumption (reduced fuel injection for active regeneration).Suitable for frequent start-stop or low temperature conditions (such as urban roads).
Fully dependent on active regeneration, requiring engine adjustments (post-injection of fuel) to increase exhaust temperatures, potentially increasing fuel consumption and thermal stress.



Other types

Product Name Jump link Product images
Shell Link
SIC DPF
Shell+Caliber Link
Universal DPF



Additional Information
Additional Information
x

Metal honeycomb, nearly 10,000 specifications, non-standard customization

Housing:
316L, 304, 444, 441 (or customer-specified)
Core material:
FeCr21AL6
Carrier outer diameter:
12~960mm
Height:
9~150mm
Cpsi:
5~1200cpsi
Shell wall thickness:
0.5~3.0, no shell is available
Core wall thickness:
0.03~0.18
Inner core:
one core, S core, three cores
Shape:
cylindrical, rectangular, square, runway-shaped, oval, trapezoidal, pentagonal, pear-shaped
